Dryer(200mm FRD / 300RD)

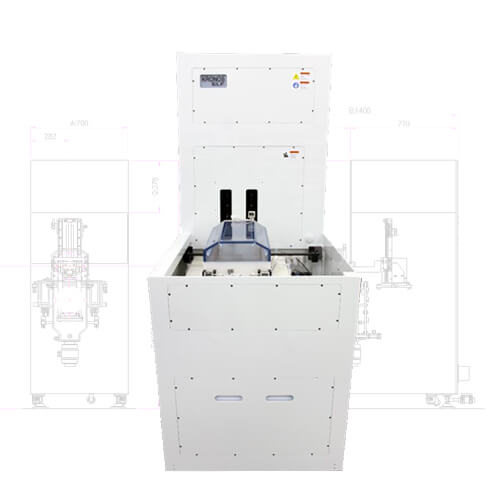

Dryer Blue Printing
  • The method of drying by utilizing the existing Marangoni principle and Spray method
  • Effective & Stable IPA Vapor Supply
  • Equipment for cleaning using DIW
  • Minimization of W/F C/T Point
  • Hight Temp. IPA Process Possible
  • Wide Process Application(AR>10, DR<20mm)
Cassette-less/ Cassette

Good Drying Performance
-One substrate contact point (Knife type)
-Constant evaporation amount (Reliable vapor supply)
-Short vapor transfer distance (Effective vapor supply)
-No delay in supplying vapor right after N₂ supply

Simple Layout
-All in one type (No sub-module)
-Easy Maintenace
-Simple Operation

ESH Friendly
-Less IPA consumption due to short path
-No delay helps more TAT
-Fire protection; IPA heating via Hot DIW
